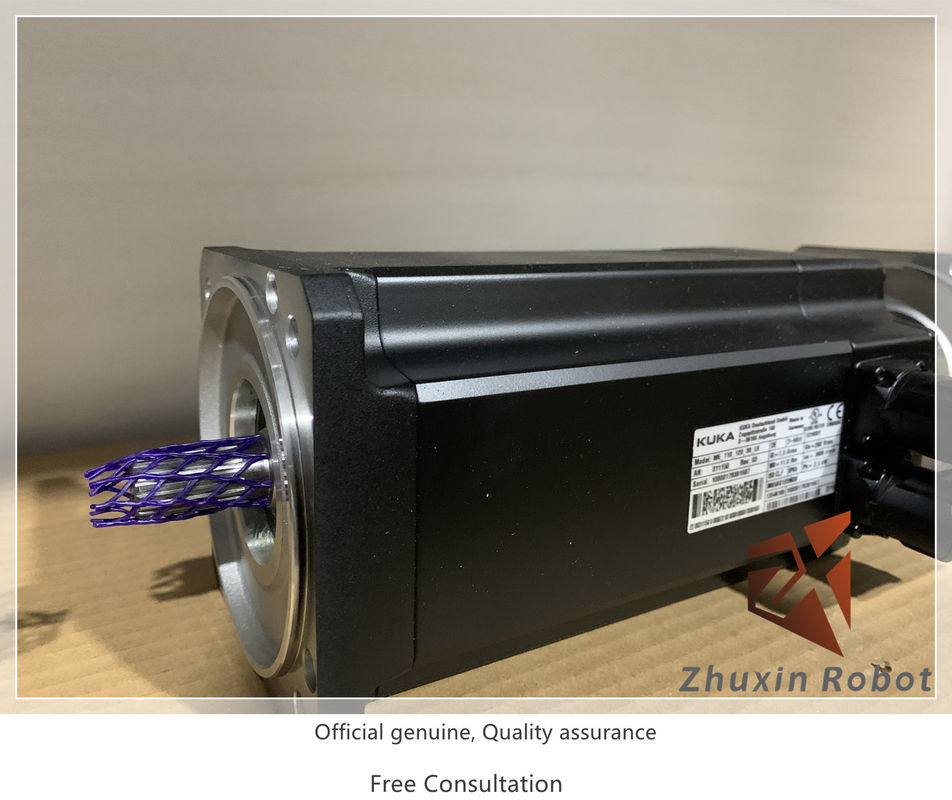

Robotic Servo Used In Kuka Robotics ME_270_180_30_S0 Fast Response
In industrial automation, KUKA Robotics stands out for its precision, speed, and reliability. A critical component enabling these capabilities is the ME_270_180_30_S0 servo motor, designed for fast response, high torque, and seamless integration with KUKA’s robotic control systems.
This article explores the ME_270_180_30_S0 servo motor, its technical specifications, advantages, and applications in KUKA robots, along with insights into servo control in industrial robotics.
1. Introduction to ME_270_180_30_S0 Servo in KUKA Robotics
The ME_270_180_30_S0 is a brushless AC servo motor optimized for high-dynamic motion control in industrial robots. It is widely used in KUKA’s KR QUANTEC, KR AGILUS, and KR CYBERTECH series, ensuring precise positioning, rapid acceleration, and smooth operation in demanding applications.
Key Features:
✔ High Torque Density – Delivers strong rotational force in compact dimensions.
✔ Fast Response Time – Minimizes lag for real-time motion adjustments.
✔ Low Inertia – Enhances acceleration/deceleration performance.
✔ Integrated Feedback System – Encoder ensures closed-loop control for accuracy.
✔ Robust Construction – IP65 protection for harsh industrial environments.
Technical Specifications of ME_270_180_30_S0
| Parameter |
Value |
| Motor Type |
Brushless AC Servo |
| Rated Power |
3.0 kW |
| Rated Torque |
18 Nm |
| Max Speed |
3,000 RPM |
| Voltage Rating |
400V AC (3-phase) |
| Feedback System |
Absolute Encoder (20-bit+) |
| Protection Class |
IP65 (Dust & Water Resistant) |
| Cooling Method |
Forced Air / Liquid Cooling |
Advantage:
| Service |
Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Warranty |
6 month |
Place of origin: China
Brand Name: KUKA
Model Number:ME_270_180_30_S0
| Version |
1 |
|
Article number
|
|
| Order designation |
|
| |
|
|
Servo drive module
|
KSP 40
|
|
Static torque
|
27Nm
|
|
Standstill current
|
15A
|
|
Torque constant (KT0)
|
1.82
|
|
Rated speed
|
2000 rpm
|
|
Rated torque
|
21.4Nm
|
|
Rated power
|
4.5kW
|
|
Moment of inertia (drive shaft)
|
93.4kg x cm²
|
|
Brake holding torque (120°)
|
26 Nm
|
|
Dyn. braking torque (20°)
|
NAN Nm
|
|
Maximum braking energy
|
7235 J
|
|
Intermediate circuit voltage
|
560 V
|
|
Weight
|
26 kg
|
|
Protection classification
|
IP64 or IP65
|
|
Number of resolver pole pairs
|
4 |
