| Place of Origin | China |
| Brand Name | BECKHOFF |
| Model Number | EL6695 EtherCAT |

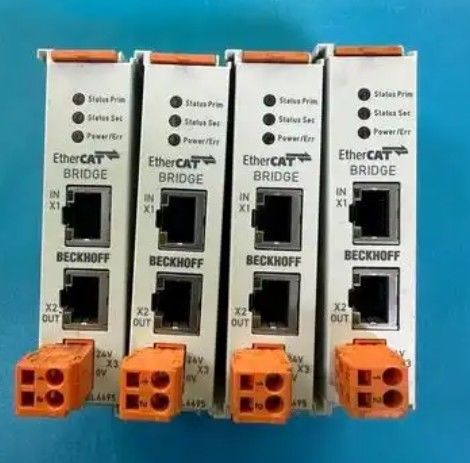

EL6695 EtherCAT Coupler from Beckhoff Automation is a critical component in modern industrial networks, enabling high-speed, real-time communication between EtherCAT master devices and slave devices (such as KUKA robots, servo drives, and PLC systems).
The EL6695 is a high-performance EtherCAT bus coupler that supports:
✅ Ultra-low latency communication (≤100μs cycle time)
✅ Hot Standby/Cold Standby redundancy for fail-safe operations
✅ Dynamic PDO (Process Data Object) mapping (up to 1440 bytes per cycle)
✅ TSN (Time-Sensitive Networking) support (IEEE 802.1AS-2020)
✅ Cross-vendor compatibility (works with KUKA, Siemens, B&R, and more)
| Technical Parameter | Value |
|---|---|
| Electric Isolation | 500 V (Power contact/power supply voltage/Ethernet) |
| Automatic Allocation of Process Images | For EtherCAT system |
| Incoming Current | 70 mA +(K-bus total current)/4, max 500 mA |
| Bus Interface | 2 RJ45 |
| Operating/Storage Temperature | -25…+60 °C/-40…+85 °C |
| Maximum Number Of Fieldbus Bytes | 1024 Byte Input And 1024 Byte Output |
| Product Category | Robotic Arm Kit |
| Connection Technology | 2 RJ45 ports |
| Functional Features | The EtherCAT protocol is connected to the bus terminal module |
| Connection Length | up to 100 meters |
