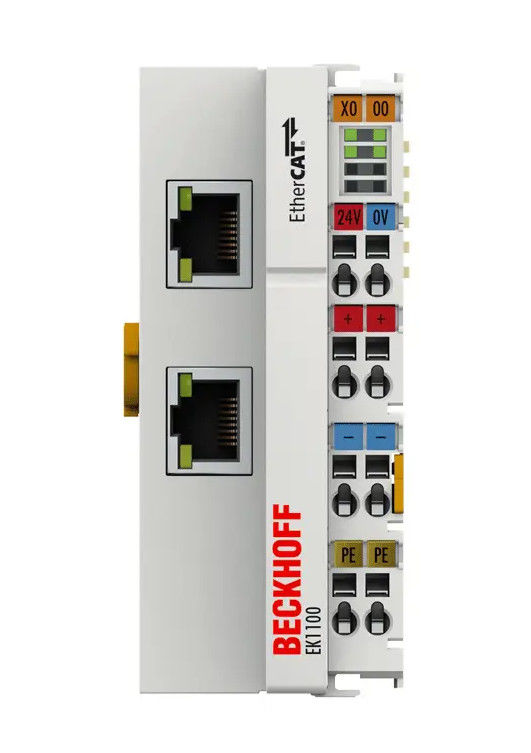

Beckhoff ek1100 Used to connect to the EtherCAT terminal module
The Beckhoff EK1100 is a high-performance coupler designed for industrial automation and electronics manufacturing with a wide range of applications and powerful features.
Main functions and applications
Connection function: The EK1100 is used to connect the EtherCAT fieldbus protocol with the EtherCAT terminal module to convert the transmitted packets from Ethernet 100BASE-TX into E-bus signals. A site consists of a coupler and any number of EtherCAT terminal modules, which are automatically detected and individually displayed in the process image.
Data transfer: The EK1100 supports high-speed data transfer with data transfer rates up to 100Mbit/s with extremely low latency (about 1µs). This makes it excellent in industrial automation applications that require fast response and high-precision control.
Extensibility: The number of EtherCAT terminal modules throughout the system can be up to 65,535, and line or star topologies can be extended or set through the EtherCAT Topology extension module or EtherCAT extension module.
Advantage:
| Service | We will according the customer requirement to design the Dress packs. Ensure to provide the best solution to customer. |
| Warranty | 6 month |
| Technical Specification | EK1100 |
| EtherCAT Tasks within the system |
Connect the EtherCAT terminal module (ELxxxx) to the 100BASE-TX EtherCAT network |
| Data transmission medium | Ethernet /EtherCAT cable (minimum Cat.5), shielded type |
| Distance between sites | Up to 100 meters(100BASE-TX) |
| EtherCAT Number of terminal modules | Up to 65,534 |
| Agreement | EtherCAT |
| Delay | About 1 µs |
| Message transmission rate | 100 Mbit/s |
| Bus Interface | 2 RJ45 |
| power supply | 24 V DC(-15 %/+20 %) |
| Us current drain | 70 mA +(E-bus total current/4) |
| Up current drain | load |
| E-bus supply current | 2000 mA |
| Power contact | Max. 24 V DC/ Max. 10 A |
| Electric isolation | 500 V(Power contact/power supply voltage/Ethernet) |
| Operating/storage temperature | -25…+60°C/-40…+85°C |
|
Anti-electromagnetic interference /anti-electromagnetic radiation performance |
According to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%,non-condensing |
| Vibration/impact resistance | In accordance with EN 60068-2-6/EN 60068-2-27 |
| Protection level/installation position | IP20/variable |
| Certification/marking | CE,UL,ATEX,IECEx,DNV GL,cFMus |
| explosion-proof sign | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
