Robot Gripper Analysis Of Safety Performance Materials Handling Robot
In the rapidly evolving field of industrial automation, materials handling robots equipped with advanced grippers play a pivotal role in enhancing efficiency, precision, and safety across various industries, including manufacturing, logistics, and e-commerce. However, ensuring the safety performance of robot grippers is critical to preventing workplace accidents, reducing downtime, and maintaining compliance with international safety standards.
2.1. Mechanical Safety Features
- Force Limiting: Grippers with force sensors or compliant mechanisms prevent excessive gripping force, reducing the risk of crushing objects or injuring operators.
- Pinch Point Protection: Guards or rounded edges minimize the risk of finger entrapment during manual intervention.
- Emergency Stop (E-Stop) Integration: Quick-release mechanisms allow immediate gripper deactivation in case of an emergency.
- Fail-Safe Design: Grippers should default to a safe state (e.g., open position) during power loss or system failure.
2.2. Sensor-Based Safety Systems
- Proximity Sensors: Detect nearby objects or human presence to prevent collisions.
- Vision Systems: Use cameras or LiDAR to identify obstacles and adjust gripper movements accordingly.
- Tactile Feedback: Force-sensitive resistors (FSRs) or pressure sensors provide real-time grip force monitoring.
- Collision Detection: Algorithms analyze sensor data to halt or reverse gripper motion upon impact.
2.3. Material Selection & Durability
- High-Strength, Lightweight Materials: Aluminum alloys, carbon fiber, or reinforced polymers improve gripper longevity while reducing inertia.
- Corrosion Resistance: Essential for food processing, pharmaceutical, or chemical handling applications.
- Thermal Stability: Grippers operating in extreme temperatures (e.g., foundries, cold storage) must maintain structural integrity.
2.4. Ergonomic & Human-Robot Collaboration (HRC) Considerations
- Cobot-Compatible Design: Grippers used in collaborative robots (cobots) must comply with ISO/TS 15066 for safe human-robot interaction.
- Reduced Moving Mass: Lightweight grippers minimize impact forces in shared workspaces.
- Intuitive Controls: User-friendly interfaces simplify gripper programming and monitoring.
Our TVGL series also comes with a 1-year warranty for its core components, giving you peace of mind and assurance that you are getting a quality product.

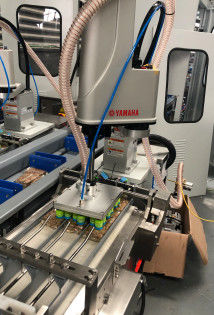

One of the key features of the TVGL series is its vacuum suck type, which enables it to lift and transport materials with ease. This technology provides a safe and reliable way to handle materials without the risk of damaging them.
Moreover, we also offer customized suction cups for robotic applications, allowing you to choose the size and shape that best fits your needs. These customized suction cups can be used with the TVGL series and other robotic vacuum lifting systems for optimal performance.
Our Robot Spare Parts product line is perfect for industrial facilities and manufacturing plants that require efficient and reliable material handling. With our TVGL series, you can trust that your materials will be handled safely and securely.
In summary, the TVGL series is a top-of-the-line product in the Robot Spare Parts category, providing industrial-grade technology for adhesive-free material handling with suction cups. With its vacuum suck type and customizable suction cups, the TVGL series is a versatile and reliable option for any industrial facility. Invest in our Robot Spare Parts today and experience the benefits of efficient and safe material handling.
| Place of Origin |
China |
| Weight |
100 kg |
| Dimension(L*W*H) |
customized |
| Condition |
New |
| Brand Name |
simbor |
| Product name |
Robot palletizing stacking vacuum chuck |
| Function |
Palletizing |
| Type |
vaccum suck |
| After-sales Service Provided |
Engineers available to service machinery overseas |
| Warranty of core components |
1 Year |
| Product line |
dimensions |
Adsorption surface type |
Check valve type |
Vacuum source type |
|
TVGL
|
200×300
|
spongiotype
|
Defaultspecifications, nocheck valve (orifice construction) |
Fan house
|
| 200×400 |
| 300×300 |
Sucker type
|
With check valve
|
Built-in
vacuum generator
|
| 300×400 |
| Product |
bar
|
NL/min
|
NL/min
|
N(-60KPA)
|
V- With check valve |
mm
|
PCS
|
|
TVGL200×300
|
6
|
710
|
230
|
415
|
4.2
|
Φ10
|
126
|
|
TVGL200×400
|
6
|
710
|
230
|
563
|
5.4
|
Φ10
|
171
|
|
TVGL300×300
|
6
|
1050
|
345
|
646
|
5.8
|
Φ10
|
196
|
|
TVGL300×400
|
6
|
1050
|
345
|
874
|
8.5
|
Φ10
|
266
|
|
VGL200×400-
|
6
|
710
|
230
|
1055
|
4.6
|
Φ10
|
28
|
