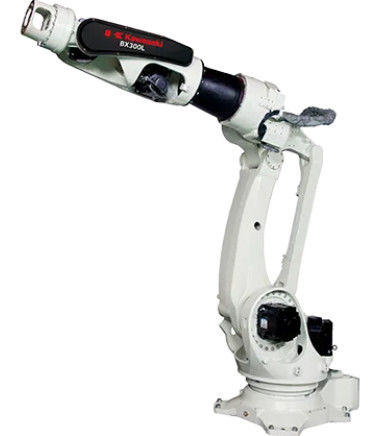

Industrial Robot Arm Kawasaki BX300L Six-axis Multi-joint Robot
  • Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot
  • Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot
  • Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot

Industrial Robot Arm Kawasaki BX300L Six-axis Multi-joint Robot

Place of Origin China
Brand Name Kawasaki
Model Number BX300L
Product Details
Type:
Kawasaki Robot Arm BX300L
Payload:
300kg
Reach:
2812mm
Weight:
1460KG
Repeatability:
0.07mm
Axes:
6
Controller:
F02/E02
Mounting Position:
Floor
Protection Rating::
IP67
Highlight:

welding industry robot arm

,

welding intelligent robotic arm

,

intelligent robotic arm bx300l

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Packaging Details
Original package
Delivery Time
5-12WEEKS
Payment Terms
L/C,T/T
Product Description

Kawasaki Robot Arm BX300L​​ use for fitting,handling,welding

Kawasaki Robot Arm Kawasaki BX300L is a six-axis industrial robot developed by Kawasaki Heavy Industries with high load capacity and high precision.The specifications of the BX300L include: the arm type is a multi-joint robot, the degree of freedom is 6 axes, the large load capacity is 300kg, the large arm span is 2812mm, and the repeated positioning accuracy is ±0.07mm. The robot has a wide range of movements, including arm rotation, forward and backward movement, up and down movement, and wrist rotation, bending and twisting. Its maximum speed is 105°/s arm rotation, 80°/s front and back arm, 90°/s up and down arm, 180°/s wrist rotation, 160°/s wrist bending, 270°/s wrist twisting.

  • Payload Capacity: 300 kg (661 lbs), making it suitable for handling large and heavy components.
  • Maximum Reach: 2,812 mm (110.7 inches), providing a wide working envelope.
  • Repeatability: ±0.07 mm, ensuring high precision in tasks such as assembly and material handling.
  • Degree of Freedom: 6 axes, allowing for flexible and complex movements.
  • High Payload and Reach: The BX300L can handle heavy components over a large working area, reducing the need for multiple robots.
  • Precision and Reliability: With a repeatability of ±0.07 mm, it ensures consistent quality in assembly and welding tasks.
  • Flexibility: The six-axis design allows for complex movements, making it suitable for a wide range of applications.
  • Durability: Built for industrial environments, it can withstand harsh conditions with its IP67 (wrist) and IP54 (base) protection.
  • Ease of Integration: Can be easily integrated with various end-effectors and peripheral equipment.

Advantage:


Service We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us.
Robot Maintains The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains.
Warranty 1 Year


Place of origin: China

Brand Name: Kawasaki

Model Number: BX300L


Type: Kawasaki  BX300L Reted Payload: 300kg
Reach: 2812mm Repeatability: 0.07mm
Axis: 6 Weight: Approx. 1460 kg
Mounting Position: Floor Protection Rating: IP 67
Axes:6 Controller: F02/E02
Item value
Applicable Industries Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company
After Warranty Service Video technical support, Online support
Video outgoing-inspection Provided
Machinery Test Report Provided
Warranty of core components 1 Year
Core Components PLC
Condition New
Place of Origin China
Warranty 1 Year
Service mode Online support
Type Kawasaki BX300L
Rated payload  300kg
Reach 2812mm
Repeatability 0.07mm
Axis 6
Weight Approx. 1460kg
Mounting position  Floor
Protection rating IP67
Controller F02/E02









                  Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 0

                                                    Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 1

FAQ:

*Q:Why are we?

 A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.


*Q:How about our service concept?

  A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.


*Q:What products can we offer?

 A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.


*Q:Why you purchase from us?

 A:You don’t worry about after-sales problem to cooperation with us.


About us

Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.


Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 2Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 3Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 4Industrial Robot Arm Kawasaki  BX300L Six-axis  Multi-joint Robot 5
