Kawasaki Robot Arm
>
|
|
| Place of Origin | Japan |
| Brand Name | Kawasaki |
| Model Number | BX300L |

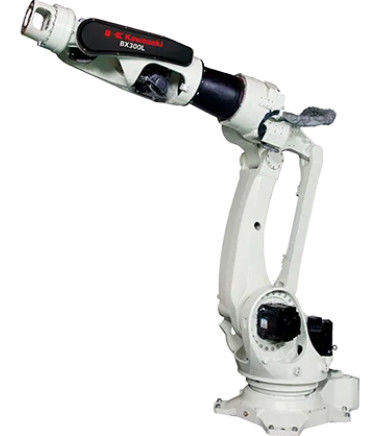

Kawasaki Robot Arm BX300L use for fitting,handling,welding
Kawasaki Robot Arm Kawasaki BX300L is a six-axis industrial robot developed by Kawasaki Heavy Industries with high load capacity and high precision.The specifications of the BX300L include: the arm type is a multi-joint robot, the degree of freedom is 6 axes, the large load capacity is 300kg, the large arm span is 2812mm, and the repeated positioning accuracy is ±0.07mm. The robot has a wide range of movements, including arm rotation, forward and backward movement, up and down movement, and wrist rotation, bending and twisting. Its maximum speed is 105°/s arm rotation, 80°/s front and back arm, 90°/s up and down arm, 180°/s wrist rotation, 160°/s wrist bending, 270°/s wrist twisting.
Advantage:
| Service | We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Robot Maintains | The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains. |
| Warranty | 1 Year |
Place of origin: Japan
Brand Name: Kawasaki
Model Number: BX300L
| Type: Kawasaki BX300L | Reted Payload: 300kg |
| Reach: 2812mm | Repeatability: 0.07mm |
| Axis: 6 | Weight: Approx. 1460 kg |
| Mounting Position: Floor | Protection Rating: IP 67 |
| Axes:6 | Controller: F02/E02 |
| Item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company |
| After Warranty Service | Video technical support, Online support |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | Japan |
| Warranty | 1 Year |
| Service mode | Online support |
| Type | Kawasaki BX300L |
| Rated payload | 300kg |
| Reach | 2812mm |
| Repeatability | 0.07mm |
| Axis | 6 |
| Weight | Approx. 1460kg |
| Mounting position | Floor |
| Protection rating | IP67 |
| Controller | F02/E02 |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
