Industry Robot Arm
>
|
|
| Place of Origin | China |
| Brand Name | KUKA |
| Model Number | KR 20 R3100 |

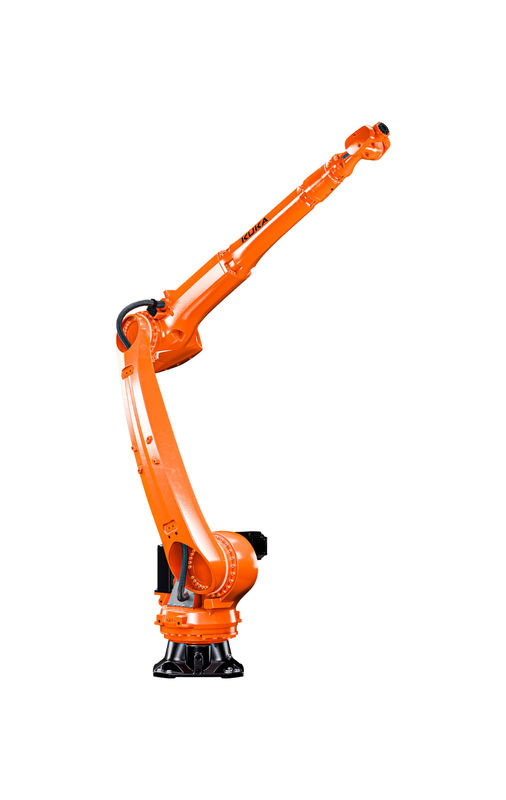

In the industrial manufacturing sector, where the pursuit is for higher efficiency and more precise welding, the KUKA KR20 R3100 six-axis robot combined with advanced laser welding technology and the powerful WorkVisual engineering environment is emerging as the golden combination to unlock ultimate flexible production. This solution not only redefines the possibilities of welding but also delivers significant competitive advantages for businesses.
Why Choose KUKA KR20 R3100 Laser Welding + WorkVisual?
Exceptional Flexibility: Six-axis robot + laser process + intelligent software, easily handles rapid product iterations and small-batch, high-mix production.
Top-Tier Precision & Quality: KUKA robot stability combined with laser technology ensures consistent welding results.
High Efficiency & Low Cost: High-speed welding, low thermal distortion, minimal rework, low energy consumption significantly boost productivity and reduce overall costs.
Doubled Engineering Efficiency: The WorkVisual all-in-one platform greatly simplifies programming, simulation, integration, commissioning, and maintenance, shortening project timelines.
Future-Proof: Based on open standards and modular design, the system is easily expandable and upgradable, protecting your investment.
Application Scenarios: Unleashing Flexible Manufacturing Potential
The KR20 R3100 laser welding cell + WorkVisual is the ideal choice for:
Automotive Manufacturing: Efficient and precise welding of body-in-white components, chassis parts, exhaust systems, battery trays (Busbar welding), motor housings, etc.
New Energy: Welding of battery modules and packs (Busbar cell connectors, end plates, case sealing), fuel cell bipolar plates, energy storage system components.
Precision Sheet Metal: High-quality, low-distortion welding of enclosures, cabinets, kitchenware, sanitary ware, elevator components, filing cabinets, etc.
Home Appliances & Electronics: Precision welding of sensor housings, compressor parts, metal tubes, microelectronic components.
Metal Furniture & Building Materials: Efficient welding of complex-design stainless steel/aluminum furniture, architectural curtain wall structures.
Aerospace & Medical: Welding of specialty materials like titanium alloys and superalloys demanding extreme precision and reliability (requires specific laser sources and environmental control).
Advantage:
| Service | We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Robot Maintains | The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains. |
| Warranty | 1 Year |
Place of origin: China
Brand Name: KUKA
Model Number: KR 20 R3100
| Type: KUKA KR 20 R3100 | Reted Payload: 20kg |
| Reach: 3100mm | Repeatability: 0.05mm |
| Axis: 6 | Weight: Approx. 549 kg |
| Mounting Position: Floor,Celling, wall | Protection Rating: IP65 |
| Footprint: 603mm x 450mm | Controller: KRC4 |
| Item | value |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company |
| After Warranty Service | Video technical support, Online support |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2019 |
| Warranty of core components | 1 Year |
| Core Components | PLC |
| Condition | New |
| Place of Origin | China |
| Warranty | 1 Year |
| Service mode | Online support |
| Type | KUKA KR 20 R3100 |
| Rated payload | 20kg |
| Reach | 3100mm |
| Repeatability | 0.05mm |
| Axis | 6 |
| Weight | Approx. 549kg |
| Mounting position | Floor,Celling, wall |
| Protection rating | IP65 |
| Footprint | 603mm x480mm |
| Controller | KRC4 |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
