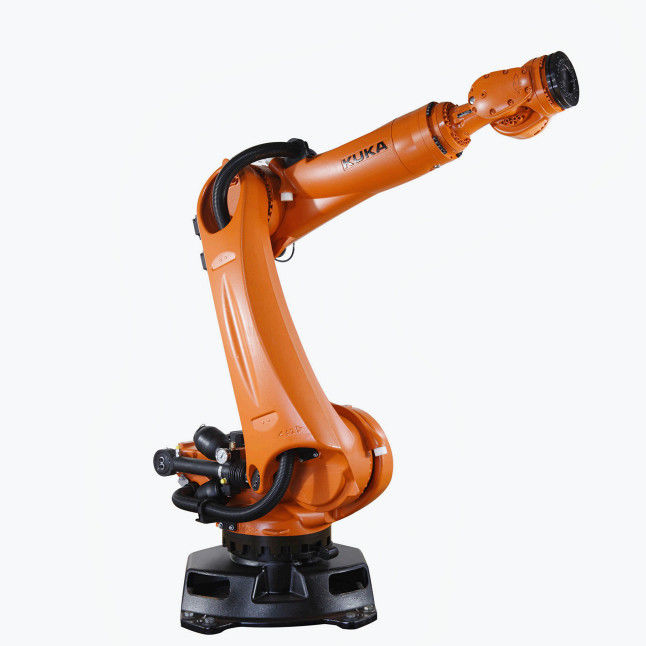

KUKA Profinet Configuration 6 Axis Robot Arm KR210 Robotic Welding
The KUKA KR210 R2700 is a versatile 6-axis industrial robot capable of welding, material handling, and other automation tasks. When integrating this robot into a welding cell with Siemens S7-1200 PLCs via Profinet communication, proper configuration is essential.
Configuring KUKA KR210 with Profinet ensures real-time control for robotic welding applications. By following this guide, you can:
✅ Establish stable Profinet communication between KUKA & Siemens PLC
✅ Optimize welding performance with precise I/O mapping
✅ Reduce downtime with proper troubleshooting steps
Troubleshooting Profinet Communication Issues
| Issue |
Possible Cause |
Solution |
| No connection |
Wrong IP/Device Name |
Verify in WorkVisual & TIA Portal |
| I/O signals not updating |
Incorrect mapping |
Recheck I/O assignments |
| Slow response |
Network congestion |
Use Profinet-optimized switches |
Why Choose the KR 210 for Welding?
(1) Unmatched Reach & Dexterity
- 2700mm horizontal reach covers large workpieces (e.g., ship hulls, wind turbine towers).
- 6-axis flexibility accesses complex joints (e.g., pipe intersections) without repositioning.
(2) Seamless Welding Integration
- KUKA.Welding software package:
- Pre-programmed weld cycles (MIG/MAG, TIG).
- Real-time arc monitoring with KUKA ArcTech.
- Compatible with Fronius, Lincoln Electric, and ESAB power sources.
(3) Rugged Reliability
- IP54-rated protection against welding spatter and dust.
- 24/7 operation with <0.5% downtime (backed by KUKA’s 20,000-hour MTBF guarantee).
Industry Applications
Advantage:
| Service |
We supply 3d model, foundation and flange dimensions of related robot. Supply training video to fresh customer. The video include of how to mastering,how to connect the cable,how to programming and so on. If you have any problem, call us anytime or sent email to us. |
| Robot Maintains |
The robot we suggest maintains every one year or 10000 hours. the main job is exchange oil, fans,UPS and so on. If the robot working in terrible environment, just like low temperature or wet environment. So such case we suggest half year or 5000 hours to do maintains. |
| Warranty |
1 Year |
Place of origin: China
Brand Name: KUKA
Model Number: KR 210 R2700-2
| Type: KUKA KR 210 R2700-2 |
Reted Payload: 210kg |
| Reach: 2700mm |
Repeatability: 0.05mm |
| Axis: 6 |
Weight: Approx. 1077kg |
| Mounting Position: Floor , |
Protection Rating: IP65 |
| Footprint:754mm X 754mm |
Controller: KRC4 |
| Item |
value |
| Applicable Industries |
Hotels, Garment Shops, Building Material Shops, MachineryRepair Shops, Manufacturing Plant, Food & Beverage FactoryFarms, Restaurant, Home Use, Retail, Food Shop, PrintingShops, Construction works , Energy & Mining, Food &Beveraqe Shops, Other, Advertising Company |
| After Warranty Service |
Video technical support, Online support |
| Video outgoing-inspection |
Provided |
| Machinery Test Report |
Provided |
| Marketing Type |
Hot Product 2019 |
| Warranty of core components |
1 Year |
| Core Components |
PLC |
| Condition |
New |
| Place of Origin |
China |
| Warranty |
1 Year |
| Service mode |
Online support |
| Type |
KUKA KR 210 R2700-2 |
| Rated payload |
210 kg |
| Reach |
2700mm |
| Repeatability |
0.05mm |
| Axis |
6 |
| Weight |
Approx. 1077kg |
| Mounting position |
Floor |
| Protection rating |
IP65 |
| Footprint |
754mm X 754mm |
| Controller |
KRC4 |
FAQ:
*Q:Why are we?
A:Our company works robot industry over fifteen years. Programming robot inclusive KUKA ,ABB,YASKAWA,FANUC,ESTUN(Chinese ROBOT ),EFORT(Chinese robot). the business involved simulation,programming,service after warranty period.
*Q:How about our service concept?
A:We keep on phone open all day. Stand in customer view to provide rationalization solution and robot selection.
*Q:What products can we offer?
A:robot, energy supply for robot, linear for robot. Training for robot. Gripper for handling.
*Q:Why you purchase from us?
A:You don’t worry about after-sales problem to cooperation with us.
About us
Companies in the "customer first, quality first, the user first" purpose, we will as always Warm and sincere service for all users, friends and customers, create brilliant tomorrow. Our main customers are Baosteel, INO,Volkswagen,Geely and so on. Over fifteen years experience in the robot industry. Our engineers can design solution,simulation,program and troubleshooting. So if you have any issue of robot. Call us any time. We will try our best to solve the problem. The other advantage is after-sales service,we have robot spare parts in stockroom. We can response promptly to help you resolve robot fault. We also have robot training. The course include programming, electric, mechanic and expert programming. So welcome to join our college.
